Small hole electric discharge machine
High precision micro hole
High grade micro hole processing machine

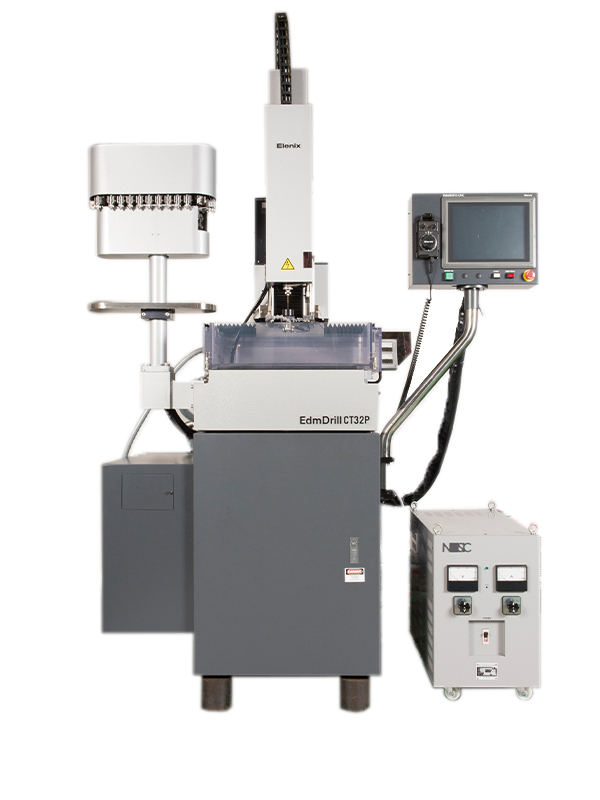

CT32P
・High-speed machining of holes from Φ0.03mm with high pitch accuracy.
・With the optional electrode exchange system, Electrode replacement can be completed in less than 2 minutes even with Φ0.03.
・Compact design that does not take up much space.
| table dimensions | 300 x 300 mm |
| X-axis (left and right) | 300 mm |
| Y-axis (back and forth) | 200 mm |
| W-axis (guide vertical) | 280 mm |
| Z-axis (electrode up/down) | 400 mm |
CT32PK
It is a model suitable for fine processing using oil with a compact design that does not take up space and has increased planar rigidity.
| table dimensions | 300 x 300 mm |
| X-axis (left and right) | 300 mm |
| Y-axis (back and forth) | 200 mm |
| W-axis (guide vertical) | 280 mm |
| Z-axis (electrode up/down) | 400 mm |

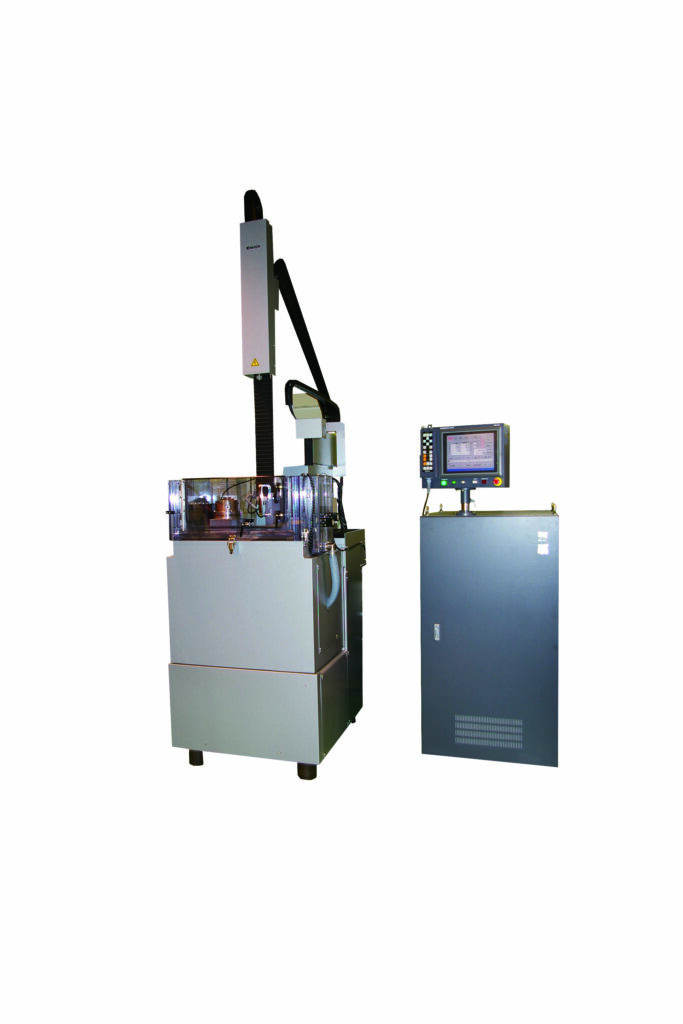

CT43P
A medium-sized machine that uses many casting parts for its components. The pocket size under the guide is large, and it is possible to process long objects by standing them up.
| table dimensions | 400 x 300 mm |
| X-axis (left and right) | 400 mm |
| Y-axis (back and forth) | 300 mm |
| W-axis (guide vertical) | 280 mm |
| Z-axis (electrode up/down) | 400 mm |
