GT300FX
Product Info

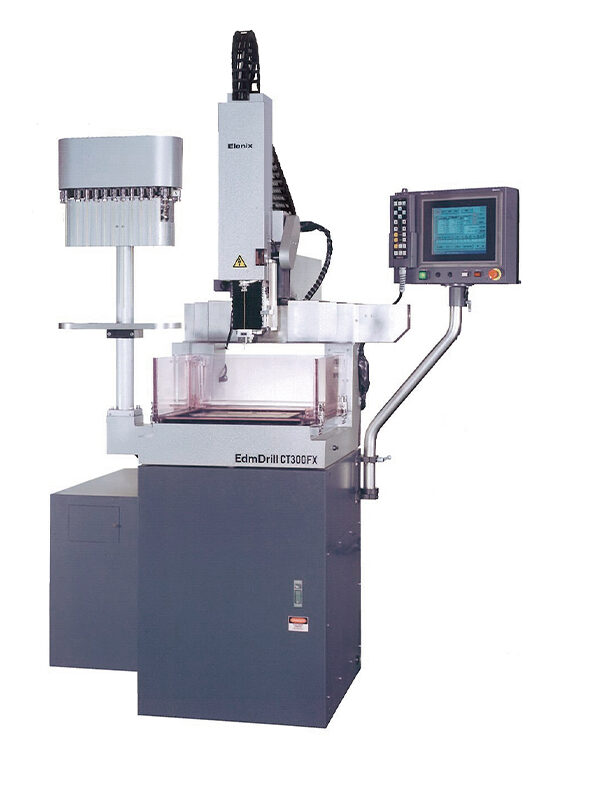

GT300FX
small creation model
A wide variety of hole shapes can be processed. (triangular hole, square hole, trapezoidal hole, polygonal hole, slotted hole, slit, etc.) No crack processing.
Electrode exchange device
| ESF-24 /36 | 24 pieces in stock (corresponding diameter φ0.3-3.0mm) |
|---|---|
| ESF-24SF / 36SF | 24 pieces in stock (corresponding diameter φ0.03-3.0mm) |
| Subtotal pipe/large diameter specification | Available |
Guide exchange device
| GSF-4 ・ GSF4B | 4 stocks (compatible diameter φ0.1 to 3.0) |
| GSF-4SF (fine specifications) | 4 stocks (corresponding diameter φ0.03 to 3.0 |
Machining fluid circulation device
| CWP15 / 20N | Pure water immersion specification (spraying possible) |
|---|
Serbo head (electrode axis/guide axis expansion)
| Z450 ～ | Electrode axis 450mm specification ~ |
|---|---|
| SPGW | High precision positioning specifications |
rotary table
| R120-10 | Face plate φ120-load capacity 10kg |
|---|---|
| R200-30 | Face plate φ200-load capacity 30kg |
rotary tilt table
| RT120N-10 | Panel φ120-load resistance 10kg/A: 360°B±90° |
|---|---|
| RT160N-20 | Face plate φ160 - load capacity 20kg / A: 360°B±90° |
others
| Column extension/extension column | Available |
|---|---|
| SF02FX | Fine output unit minimum diameter φ0.02~ |
| KC77 | Machining fluid cooling device |
| ST3 | 3 color sign tower |
| LAN data input/output | External NC-PG data input/output |
| BP20 | Booster power supply (additional 20A) |
| BDT-02 | Penetration detection |
| E-IoT | IoT unit |
